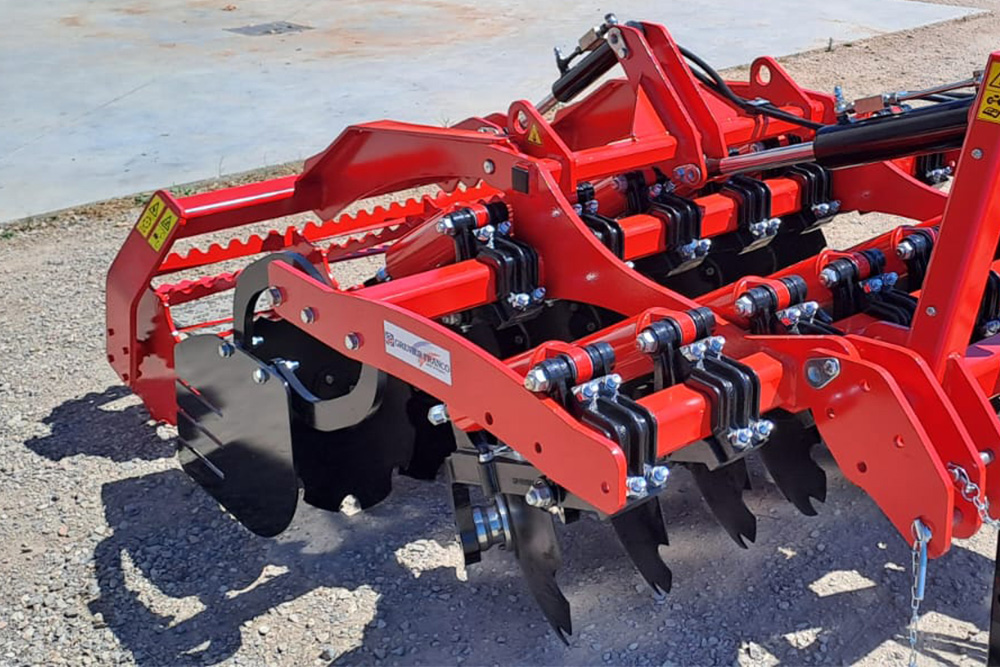

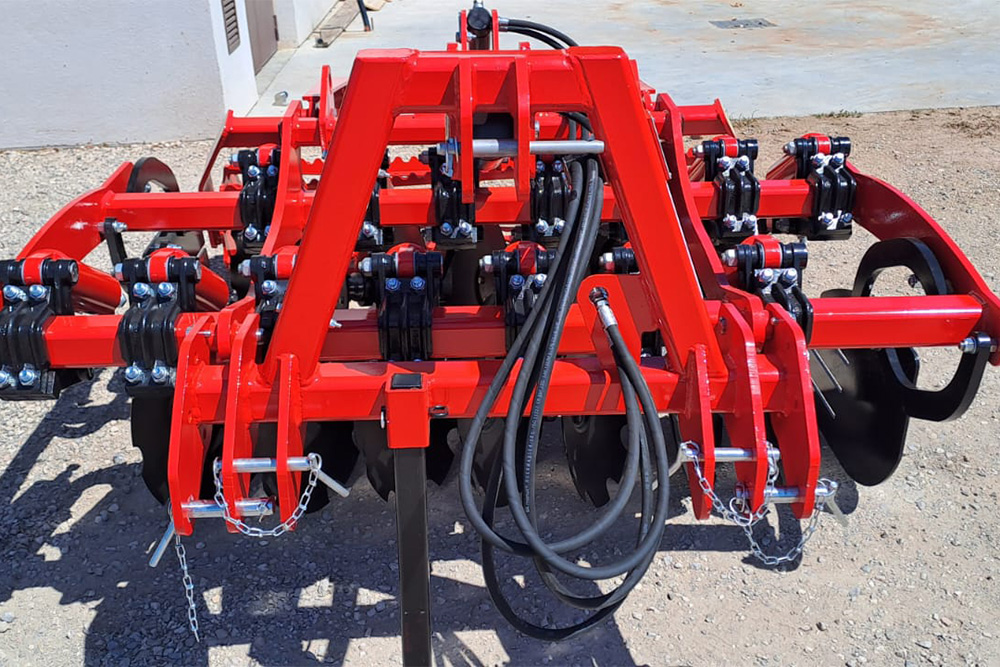

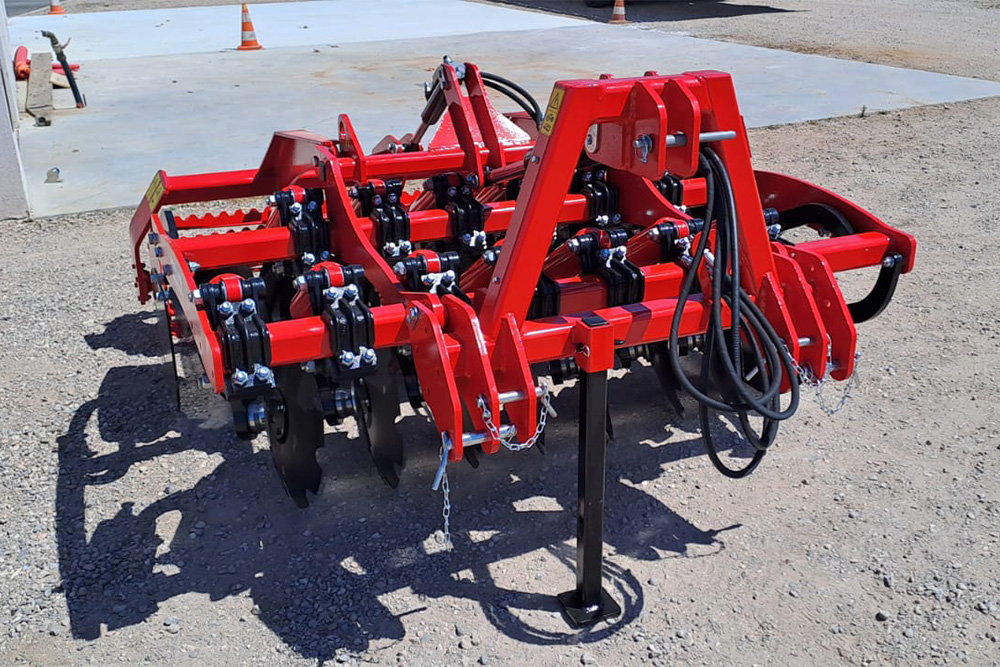

Disc cultivator
Cultidisq
- For vines from 2m20 inter-rows.
- Discs in 2 rows for horizontal and vertical cutting of the strip of earth to a depth of 5-10 cm.
- Ø 510 mm discs.
- Series roller Ø 460 mm.
- Working speeds between 7 and 15 km/h.
- Optional hydraulic frame and roller lift.
Technical specifications
| Type |
Overall length (m) |
Overall width (m) |
Working width (m) |
Hitch category |
Weight (kg) |
| Cultidisq 6 |
2.35 |
0.92 |
0.76 |
CAT 1 |
680 |
| Cultidisq 8 |
2.35 |
1.15 |
0.99 |
CAT 1/2 |
770 |
| Cultidisq 10 |
2.35 |
1.39 |
1.22 |
CAT 1/2 |
940 |
| Cultidisq 12 |
2.35 |
1.62 |
1.46 |
CAT 1/2 |
1060 |
| Cultidisq 14 |
2.35 |
1.85 |
1.69 |
CAT 1/2 |
1080 |
| Cultidisq 16 |
2.36 |
2.08 |
1.92 |
CAT 1/2 |
1300 |
| Cultidisq 18 |
2.36 |
2.31 |
2.15 |
CAT 1/2 |
1410 |
| Cultidisq 20 |
2.36 |
2.55 |
2.38 |
CAT 1/2 |
1535 |
Optional equipment
- Disc with spring + flange.
- Age guide.
- Deflector: the pair.
- Hydraulic roller adjustment.
